NOBILCAM-5X is a 5-axis dry milling machine specially designed for dental applications including Zirconia, PMMA, Wax, Composite etc. The milling machine occupies a small space but has a large enough working cabin. And its 5-axis micron level milling with high precision could bring more reliable performance as well as efficiency.

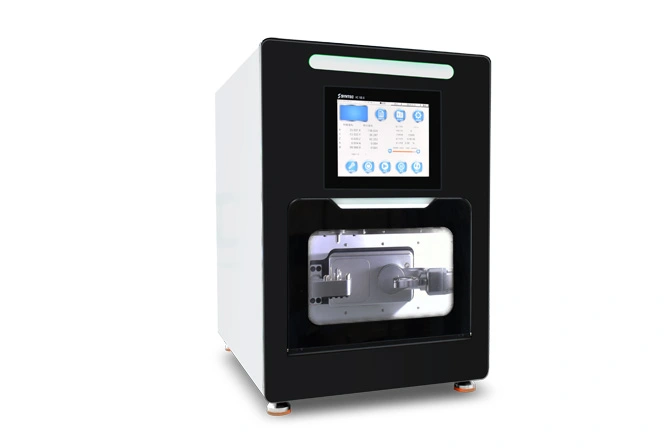

  • nobilcam 5x 01

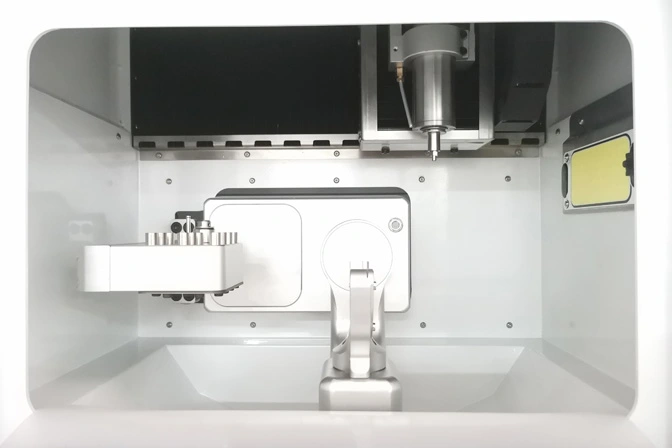

  • nobilcam 5x 02

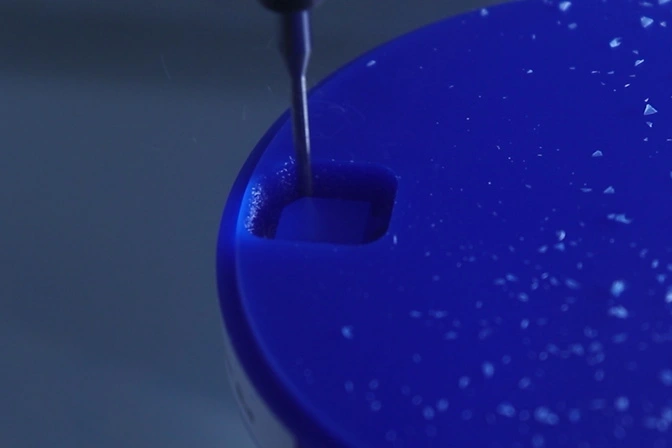

  • nobilcam 5x 03
  • nobilcam 5x 01
  • nobilcam 5x 02
  • nobilcam 5x 03

Parameter of NOBILCAM-5X



Number of axis

Five-axis linkage

Milling method

Dry milling

Cutting material

Zirconia block, PMMA, Wax, Resin, Composite Material

Block size

Diameter 98mm, thickness 10-30mm

Disc Stroke range

X/Y/Z:200-120-120 A:360°, B: +30°~ 90°




Full servo motor

Tool (Bur)

Quantity:7 Diameter:4mm


Left and right: 530mm, Front and back: 650mm Up and down: 760mm


Total mass of cutting machine: 145KG

Required air pressure

6.0-6.5 bar

Compressed air flow

Approx. 50L/min

Minimum suction volume

Approx. 3000L/min



Power supply

220-230V AC, 50/60Hz

Milling precision


  • Advantages

    • 90° vertical milling strategy: It’s more favourable to anterior milling, to achieve a fine fabrication of the denture, and ultimately to present a more perfect milling effect;

    • C-Clamp holder: The special shape of the clamping fixture permits milling of the material edge, which significantly increases the material utilization by up to 20%;

    • Large B-axis rotation: +35° - 92° swivel range makes large-angle implant manufacturing possible;

    • High efficiency: All different indications can be fabricated in a short time, for example, milling a single crown takes only 15 minutes and milling a 3-unit bridge takes only 22 minutes.

    • Interruption recovery: Unforeseen circumstances lead to programme interruption and milling stoppage.Milling can be resumed automatically from the interrupted step, effectively improving productivity.

  • Available Materials

    Zirconia block, PMMA, Wax, Resin, Composite Material
