Dental 3D Printer

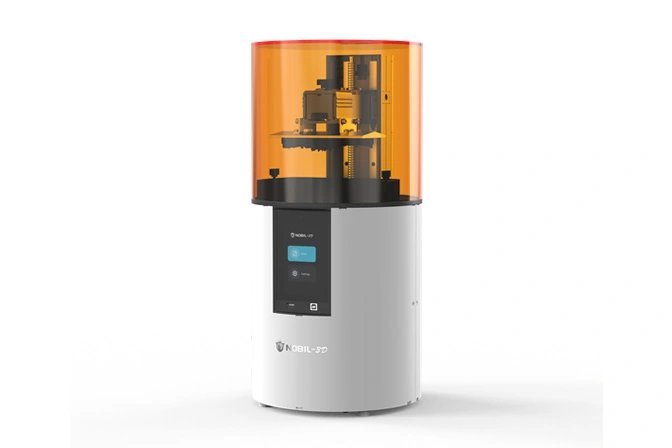

NOBIL-3D is a printer specifically designed for dental digitization. It has a higher precision and a more consistent quality, as well as a more automated operating process that enables the printing of a wide range of models, including dental models, denture base, surgical guides, etc. It significantly improves the moulding efficiency compared to the traditional milling method.


  • dental 3d printer 01
  • dental 3d printer 01

Dental 3D Printer Specifications

Print Size:

158*89*100mm

Machine Size:

280*280*587mm

Pixel Dimensions:

0.061mm

Printing accuracy:

50μm

Maximum printing speed:

80mm/h

Print layer thickness:

0.025-0.1mm

Resolution:

2560*1440

Connection method:

USB/WIFI

Z axis type:

Double linear guide + ball screw

Z-axis precision:

0.01mm

Rated power:

60W

Machine weight:

13kg

Product Application Scope:Dental model; Surgical guide; Denture base; Night guard


  • Advantages

    • Highly stable Z-axis:Dual linear guideway design + ball screws.

    • Automatic acrylic cover:Automatic lifting function of the acrylic cover, automatic opening when printing is completed.

    • ACF 3D Nano Mold Release Technology:Dramatically reduces mold pulling resistance, increasing print speed and success rate.

    • Self-developed integral light source:Uniformity of light output up to 95%, better than parallel light source.
